puriFlash High Pressure Dry-load
The High Pressure Dry-load columns for solid deposits allows the injection of crude sample
slightly soluble or not soluble in the mobile phase on stainless steel prep-LC columns.
Compared to the liquid injection, the solid deposit prevents the diffusion of the crude sample
in the purification column improving the resolution, the efficiency and therefore the purity of the products collected.
The solid deposit that can be achieved with silica, silica C18 or Celite is very easy to use.
P/N : 7A1590 |
P/N : 7A1870 |
P/N : 7A1880 |
P/N : 7A1610 |
- 5/16"-24 thread (Valco type) for 1/8" OD tubing
- High Pressure Dry load of 21.2mm and 30mm ID
- Compatible with prep-LC systems
- Reusable (cleaning possible)
|
|
Dimensions |
P/N |
Cdt |
puriFlash HP dry load |
Empty |
50x21.2mm |
0A0320 |
1u |
|
|
75x21.2mm |
0A0330 |
1u |
|
|

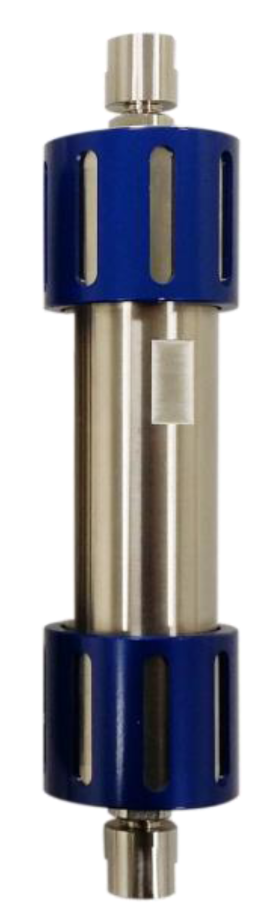

100x21.2mm |
7A1870 |
1u |
|
|
50x30mm |
0A0340 |
1u |
|
|
75x30mm |
0A0350 |
1u |
|
|

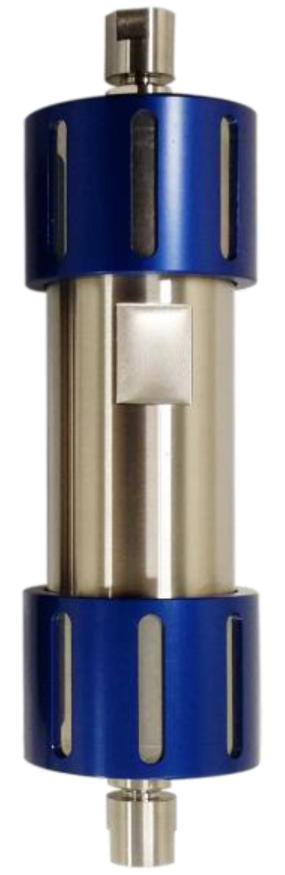

100x30mm |
7A1880 |
1u |
|
|
|
|
|
Tools |
Wrench |

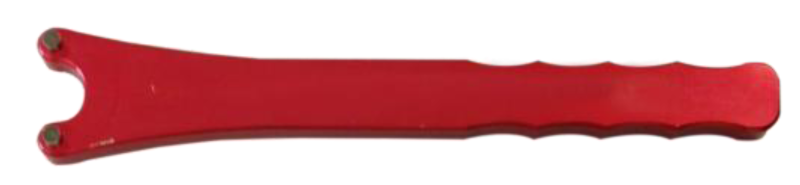

21.2mm |
7A1590 |
1u |
|
|

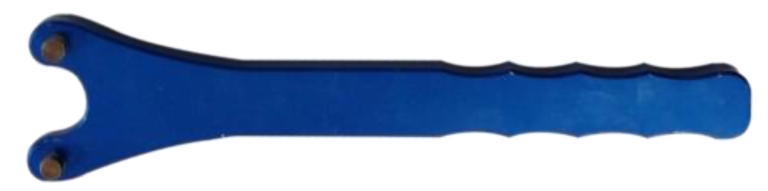

30mm |
7A1610 |
1u |
|
|
|
|
|
Replacement parts |
Frits |
21.2mm |
0A2100 |
1u |
|
|
30mm |
0A2110 |
1u |
|
