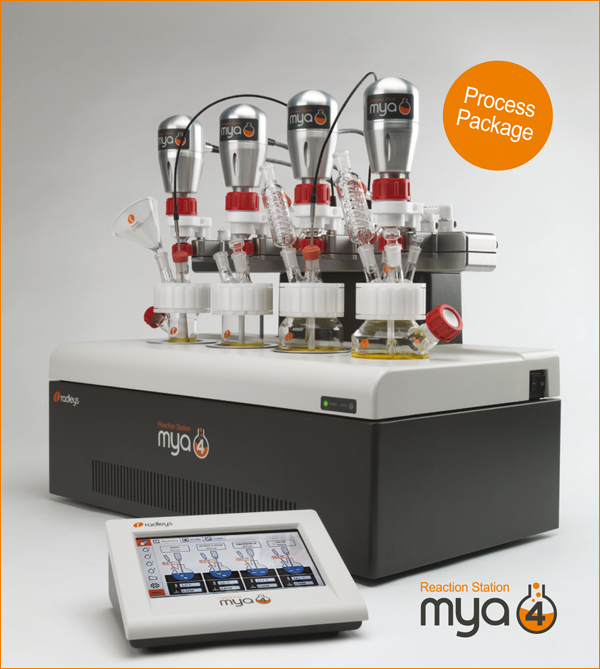

Mya 4 Reaction Station Process Package


One reaction station with limitless possibilities



  • 4 independent zones
  • Magnetic and overhead stirring
  • -30 °C to +180 °C
  • 2 ml to 400 ml
  • Software control

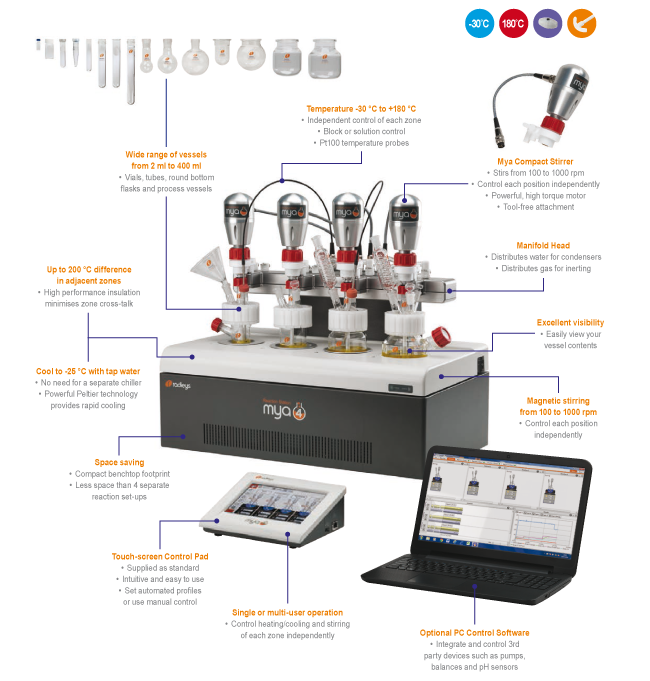

Mya 4 - Key Features

A 4-zone reaction station offering safe and precise heating, active cooling, software control and data-logging for 24/7 unattended chemistry

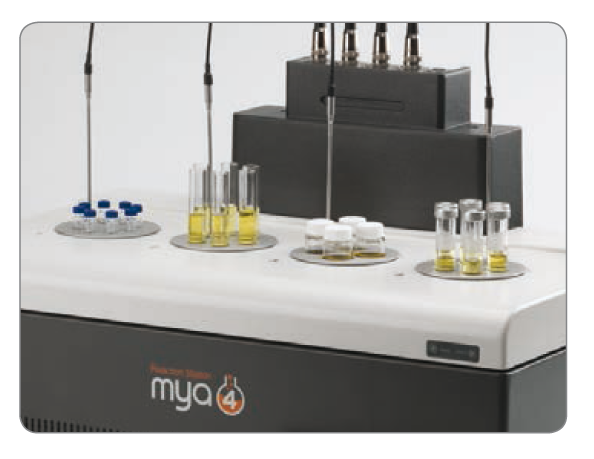

Mya 4 - Overview

A flexible discovery tool for single or parallel synthesis; lead or reaction optimisation;
reagent, catalyst and solvent screening



  • Single or parallel synthesis
  • Lead optimisation
  • Reaction optimisation
  • Reagent, catalyst and solvent screening
  • Design of Experiment (DoE)
  • Process development
  • Scale up
  • Route scouting
  • Crystallisation studies
  • Polymorph screening

Flexible and versatile

  • 4 different zones, each with heating and active cooling.
  • Use one compact system for a range of experiments.
  • Accepts a wide range of vessel sizes and styles.
  • Control your experiments and log results automatically.

Safer, cleaner, greener and more productive

  • Replace inefficient, messy and unsafe oil and ice baths.
  • Save space compared with separate reaction set-ups.
  • Software control improves safety, reduces manual errors,
    and allows 24/7 unattended chemistry, for improved productivity.
  • Create, repeat and share experiments and results with ease and accuracy.
  • Easily manage complex multi-step and multi-device experiments.
  • Integrate 3rd party devices such as pumps, balances and pH sensors etc.
 Optional PC Control Software
 Touch-screen Control Pad

Mya 4 - Details

One flexible reaction station to meet all of your needs. Choose from a wide selection of vials, tubes, round bottom flasks and process vessels, from 2 ml to 400 ml






Mya Compact Stirrer

4 reaction zones

  • Use 1, 2, 3 or 4 zones
  • Operate zones in parallel or individually by multiple users
  • Removable anodised aluminium inserts for different size vessels

Wide selection of vessel styles and volumes

  • Vials and tubes from 2 ml to 50 ml:
    - 12 mm, 16 mm, 17 mm, 17 mm tapered, 24 mm, 1 inch and 28 mm diameters
    - Radleys Carousel 12 Plus reaction tubes
  • Round bottom flasks from the Carousel 6 Plus range:
    - 25 ml, 50 ml, 100 ml and 250 ml
    - One or two side arm options
    - Standard and wide neck options
    - Baffled vessel options
  • Process reaction vessels:
    - With straight sides and dished base to mimic jacketed reactors
    - 50 ml, 100 ml, 150 ml, 250 ml and 400 ml
    - Side arm option
    - Baffled vessel options
  • Multi-neck glass lids - 3 or 5-neck
    - For wide neck round bottom flasks and process vessels
  • Accessory glassware
    - Condensers, dropping funnels, solid addition funnels, stoppers etc.

Precise temperature control

  • Temperature range from -30 °C to +180 °C
  • Up to 200 °C difference between adjacent positions
  • Control the temperature of each zone independently
  • Choose to control by block or solution temperature
  • Pt100 temperature probes available in stainless steel or PTFE coated

Use Mya 4 with or without a chiller

  • Mya 4 uses powerful Peltier technology to provide rapid cooling to -30 °C
  • Peltier cells require tap or chilled water to dissipate heat
Peltier cooling source Tap water at 15 °C Chilled water at 5 °C
Minimum block temperature -25 °C -30 °C
Minimum solution temperature -20 °C -25 °C

Magnetic or optional overhead stirring

  • Integrated magnetic stirring - from 100 to 1000 rpm
  • Optional overhead stirring - from 100 to 1000 rpm
  • Control the stirring speed of each position independently
  • Use magnetic or overhead stirring in adjacent zones

Mya 4 - Control Options

Take control of your chemistry with 24/7 unattended software control for improved productivity, safety and reduced manual errors

 Touch-screen Control Pad

  • Supplied as standard with Mya 4
  • Intuitive and easy to use
  • Compact footprint
  • Set automated profiles or use manual control

PC Control Software - optional

  • Integrate and control 3rd party devices
  • Create complex experiments with any number of steps
  • Report Wizard creates reports in rich text format
    or export results in CSV
 Mya_Reaction_Station_ControlOption1_Radleys_Interchim_0517  Mya_Reaction_Station_ControlOption2_Radleys_Interchim_0517

 Control Options

 Control 3rd party devices

Features Touch-screen
Control Pad
PC Control

   PC Control Software will control and
  log the following 3rd party devices:

  • Syringe Pumps
  • pH Sensors
  • Peristaltic Pumps
  • Balances
  • Vacuum Pumps
  • Gas Flow Controllers
  • Pressure Sensors
  • Conductivity Sensors


Touch-screen Control Pad is supplied as standard with Mya 4 Included Optional
Intuitive and easy to use touch-screen control Yes No
Compact footprint - fumehood compatible Yes No
Maximum 10 steps of 16 hours each Yes No
Multi-user - independently run experiment in 4 zones Yes No
Control and log the temperature and stirring of each zone independently Yes Yes
Set safety limits Yes Yes
Export experimental profiles and results in CSV via USB memory stick Yes Yes
Adjust parameters manually - using manual/direct mode Yes Yes
Create multi-step recipes - using profile/schedule mode Yes Yes
Flexibility to make and track on-the-fly adjustments to your experiment Yes Yes
Automatically log all data Yes Yes
Share experimental results and recipes with other users Yes Yes
View real-time graphs Yes Yes
Control and log up to 16 x 3rd party devices on one screen No Yes
Create complex experiments with any number of steps No Yes
Interlink devices and set feedback/control loops and end point conditions No Yes
Report Wizard creates detailed reports in RTF or export results in CSV No Yes
Log comments No Yes
Runs on a Windows laptop No Yes
