PR Class: High-Flow Dual Head Pumps

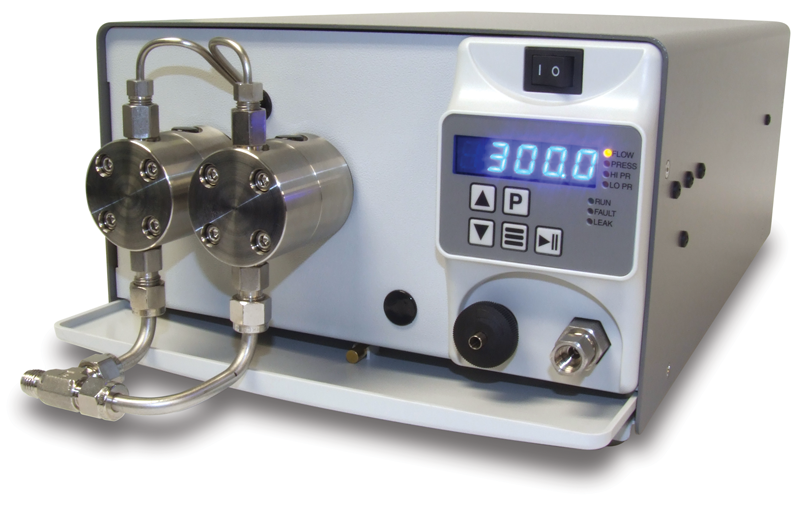

Pump_PR_Class_High_Flow_Dual_SSI_Interchim_1909


Dual-headed, positive displacement piston pumps.
High, accurate flows and excellent pressure capability for a variety of uses.
Wide range of Preparative and Semi-Prep Chromatography, as well as SMBC (simulated moving bed chromatography), and many process and industrial applications.

Flow Rate



Pressure



Fluid Path



Control

100mL/min
300mL/min
  Up to 4,000psi (100mL/min)   Stainless Steel,
PEEK or Titanium
  RS-232, Micro USB,
Voltage Flow Control,
Run/Stop




Use the following lists of options and option codes to construct your pump model number.


Example Model Number: P R 1 0 0 S F X 1 A

P R
- - -
-
-
-
-
-
Pump Class Flow Rate Material Self-Flush Pulse Dampener Piston Seal Inlet/Outlet Fittings
P R 1 0 0 - 100mL/min
(4,000psi max.)
S - Stainless Steel
Fluid Path
F - w/ Self-Flush
Piston Wash
P - Pulse Dampener Only
No Pressure or Leak Sensors
1 - Standard Seal
(SS Energizer)
A - 1/4"-28 inlet - 1/16" CPI outlet
Flatbottom
  3 0 0 - 300mL/min
(1,000psi max.)
P - PEEK
Fluid Path
N - No Self-Flush T - Pulse Dampener
w/ Pressure & Leak Sensors
2 - Organic Seal
(SS Energizer)
B - 1/8"-CPI inlet - 1/16" CPI outlet
(SS only)
    T - Titanium
Fluid Path
  N - No Pulse Dampener
No Pressure or Leak Sensors
3 - Standard Seal
(FP Energizer)
SS = Stainless Steel
FP = Fluoropolymer
C - 1/8"-CPI inlet - 1/8" CPI outlet
(SS only)
    J - Jacketed SS
Pump Head
  X - No Pulse Dampener
w/ Pressure & Leak Sensors
  D - 1/4"-28 inlet - 1/4"-28 outlet
Flatbottom
            E - 1/4"-CPI inlet - 1/8"-CPI
(SS only)
