ANALYTICAL SCIENCES > Instruments > HPLC columns Selector

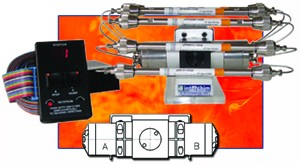

HPLC Columns Selector

  • Time-saving
  • Use HPLC columns in sequence
  • Two selection valves in SS or PAEK with small bore to minimize dead volumes
  • Position indication with LED display
  • Manual control
    - Step and home functions
    - clockwise and counterclockwise functions
  • Remote control
    - Step and home functions with contact closure
    - Direct position access with BCD 5V negative true input
    - Direct position access with RS232 input

Specifications

2 multiposition valves 1/16 " - 0.40mm bore

5000 psi liq
75°C max
Metal stator
Valcon H rotor

5000 psi liq
50°C max
PAEK stator
Valcon E rotor
    6 columns 8 columns 10 columns
  Metal stator
Valcon H rotor
871893 R47210 U56650
  PAEK stator
Valcon E rotor
871890 R47215 U56655



Options
  • 2", 3", 4" and 6" standoffs
  • Hastelloy C stator
  • Optional 0.25mm bore available
  • Optional 0.75mm bore for prep HPLC available
          Interface cables
  • RS232 P/N: 824290
  • Agilent HP1100
    - P/N: S29360 for 6 columns selector
    - P/N: T29380 for 8 and 10 columns selector
    - A data acquisition card is required (G1351A) please contact your Agilent  after sales department
  • Waters Alliance
    - P/N: U71570 for 6 columns selector
    - P/N: BU3590 for 8 and 10 columns selector

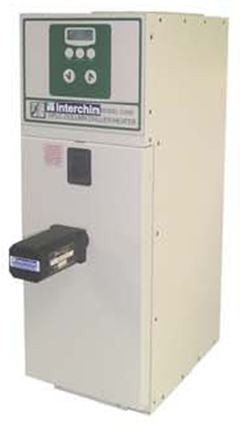

Thermostated HPLC columns selector available on request
