ANALYTICAL SCIENCES > Instruments > HPLC Pump > UHPLC Pump

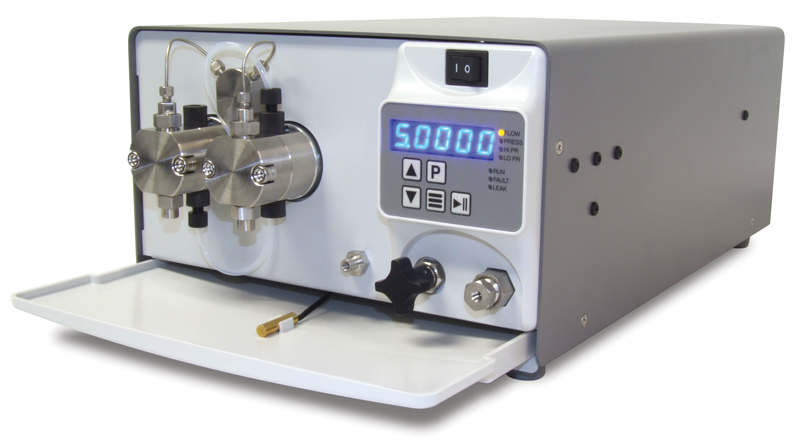

LU Class: Accurate flow rates for pressures up to 18,000 psi

Pump_LU_Class_Accurate_Flow_Rates_SSI_Interchim_1909


Dual-headed, positive displacement piston pumps.
Accurate flow rates at extremely high pressures.
Fast, high pressure analytical HPLC, with increased peak resolution
and exceptional retention time repeatability.

Flow Rate



Pressure



Fluid Path



Control

5mL/min   18,000psi   Stainless Steel,
or Titanium
  RS-232, Micro USB,
Voltage Flow Control,
Run/Stop




Use the following lists of options and option codes to construct your pump model number.


Example Model Number: L U 0 0 5 S F X 1 A

L U
- - -
-
-
-
-
-
Pump Class Flow Rate Material Self-Flush Pulse Dampener Piston Seal Inlet/Outlet Fittings
L U 0 0 5 - 5mL/min
(18,000psi max.)
S - Stainless Steel
Fluid Path
F - w/ Self-Flush
Piston Wash
T - UHP Pulse
Dampener w/ Pressure & Leak Sensors
1 - Standard Seal
(SS Energizer)
A - 1/4"-28 inlet - 1/16" CPI outlet
Flatbottom
    T - Titanium
Fluid Path
N - No Self-Flush X - No Pulse
Dampener w/ Pressure & Leak Sensors
  B - 1/8"-CPI inlet - 1/16" CPI outlet
(SS only)
            C - 1/8"-CPI inlet - 1/8" CPI outlet
(SS only)
