	PhotoRedOx Box

PhotoRedOx Box
Description:

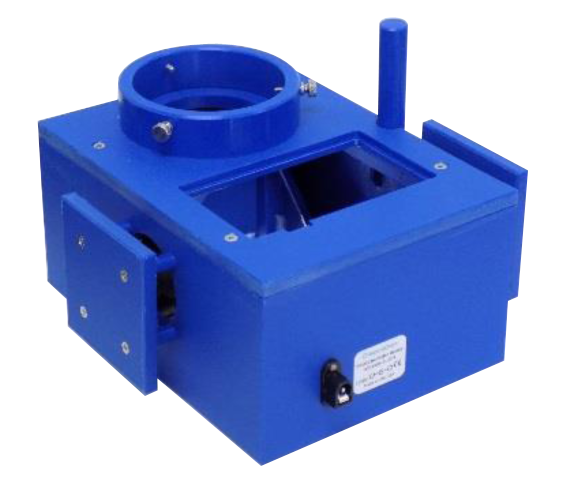

The EvoluChem™ PhotoRedOx Box is designed to facilitate photochemical experiment. This apparatus is a multi-format photo reactor compatible with most vial formats (0.3 ml, 2 ml, 4 ml 8 ml, 4 ml and 20 ml vials) and flow reactor. Features		PhotoRedOx Box # HCK1006-01-016 Patent Pending
Light source (Kessil blue 34W), other sources can be adapted Photochemistry chamber to evenly distribute light Flexible format vials (from 0.05 ml to 15 ml) Magnetic stirring on standard heat/stirring plate Cooling by fan to maintain experiment at room temperature Pre-designed array of catalysts and reagents available

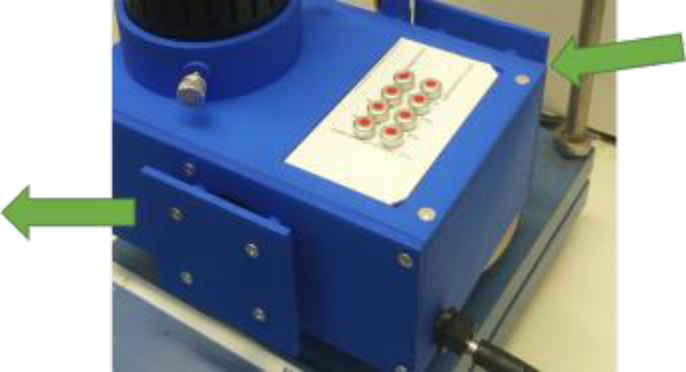

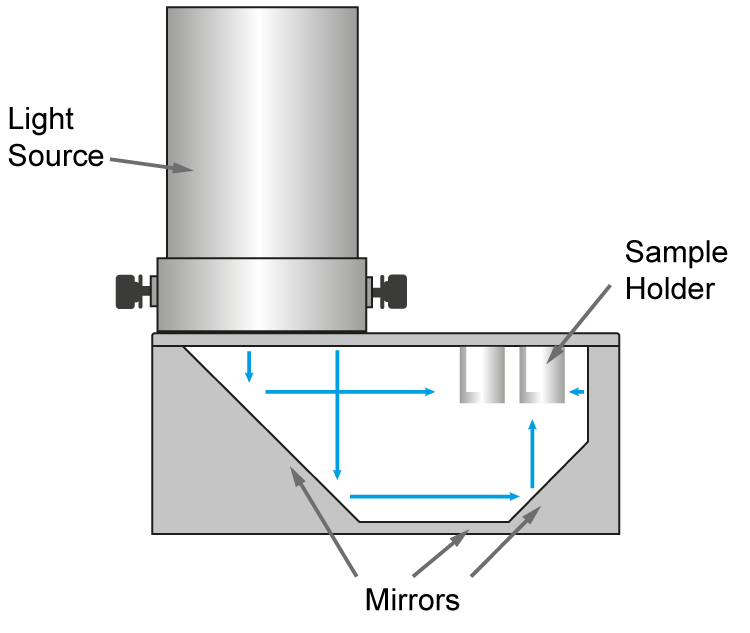

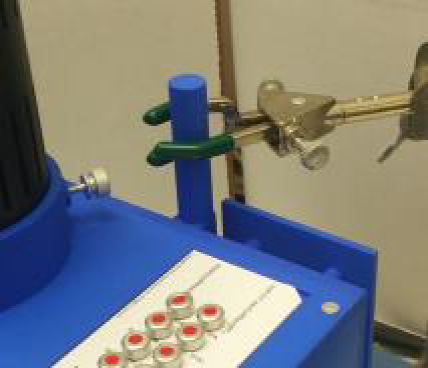

Handle to secure device on a stirring plate	Unique geometry to focus light on samples	Air flow to maintain samples at room

Fit multiple vial sizes

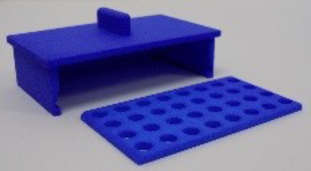

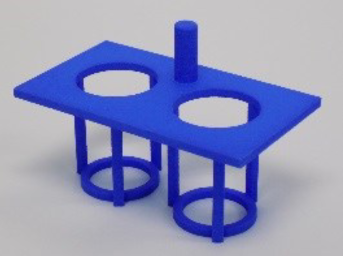

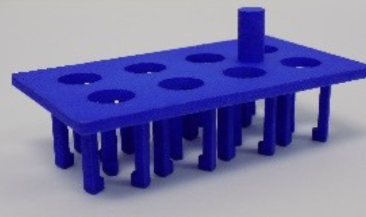

32 x 0.3 ml vials HCK1006-01-017	8 x 2 ml vials HCK1006-01-018	8 x 4 ml vials HCK1006-01-019	8 x 8 ml vials HCK1006-01-020	2 x 20 ml vials HCK1006-01-021

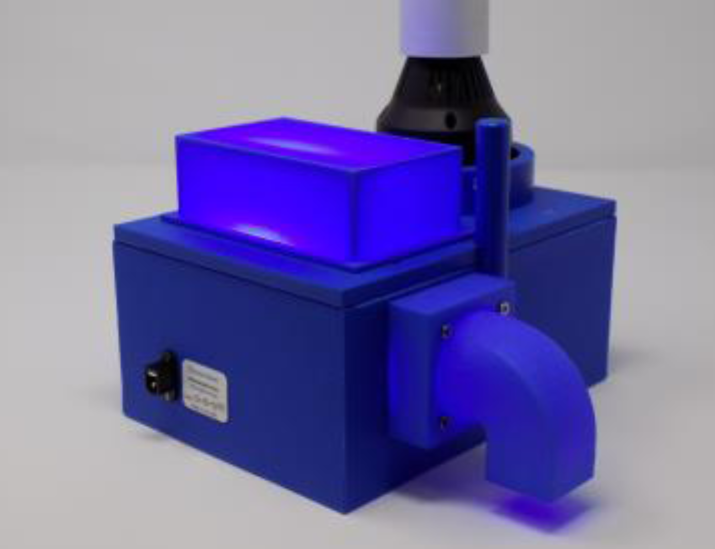

Flow Reactor	Light Proofing Upgrade

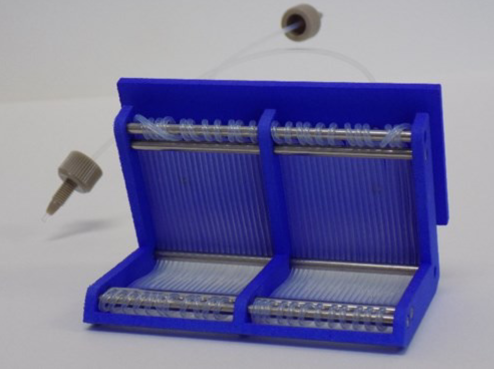

PhotoRedOx Flow Reactor (2ml) HCK1006-01-022	The PhotoRedOx Box has been designed to limit the exposure to light during experiment. However when using light spectrum below 500 nm, repetitive exposure to light should be avoided. In addition to personal protective equipment, we offer upgrade kit to dramatically reduce the light leaking from the device. HCK1006-01-026


	PhotoChem Light Sources

PhotoChem Light Sources

Description:

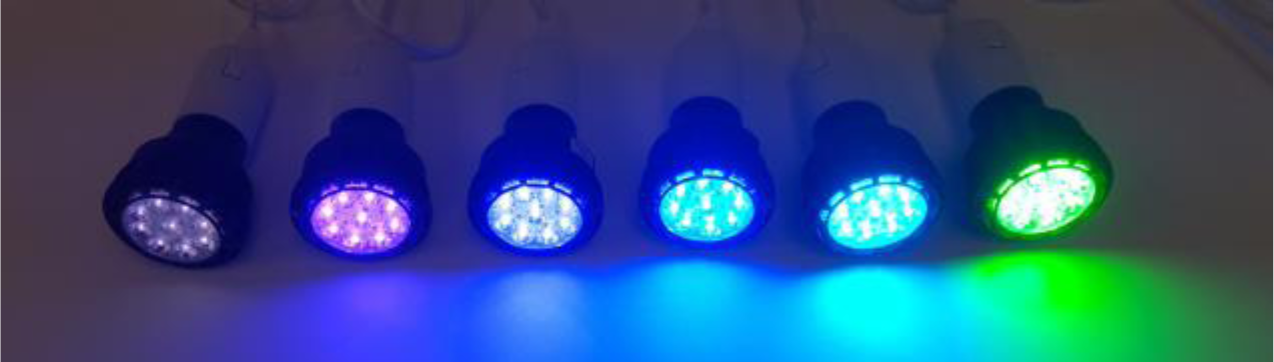

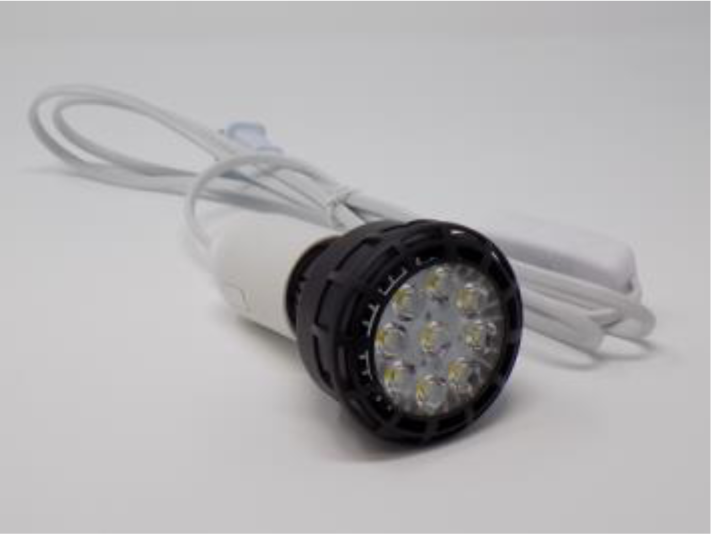

The EvoluChem™ LED spotlights are designed specifically for photo-catalytic chemistry applications. They fit the photoredox box and they are designed to irradiate all samples with maximum efficiency. The LED chips are selected for specific wavelengths 365 nm, 405 nm, 425 nm ,455 nm, 475 nm, 525 nm, 6200K white. General Specifications	EvoluChem™ LED 18W
Power Consumption : 18W or 30W Max Input Voltage : 100-240 VAC Beam Angle : 25° Wavelength Options : 365 nm, 405 nm, 425 nm 455 nm, 475 nm, 525 nm, 6200K white LED chip : Cree, EPILED and LG

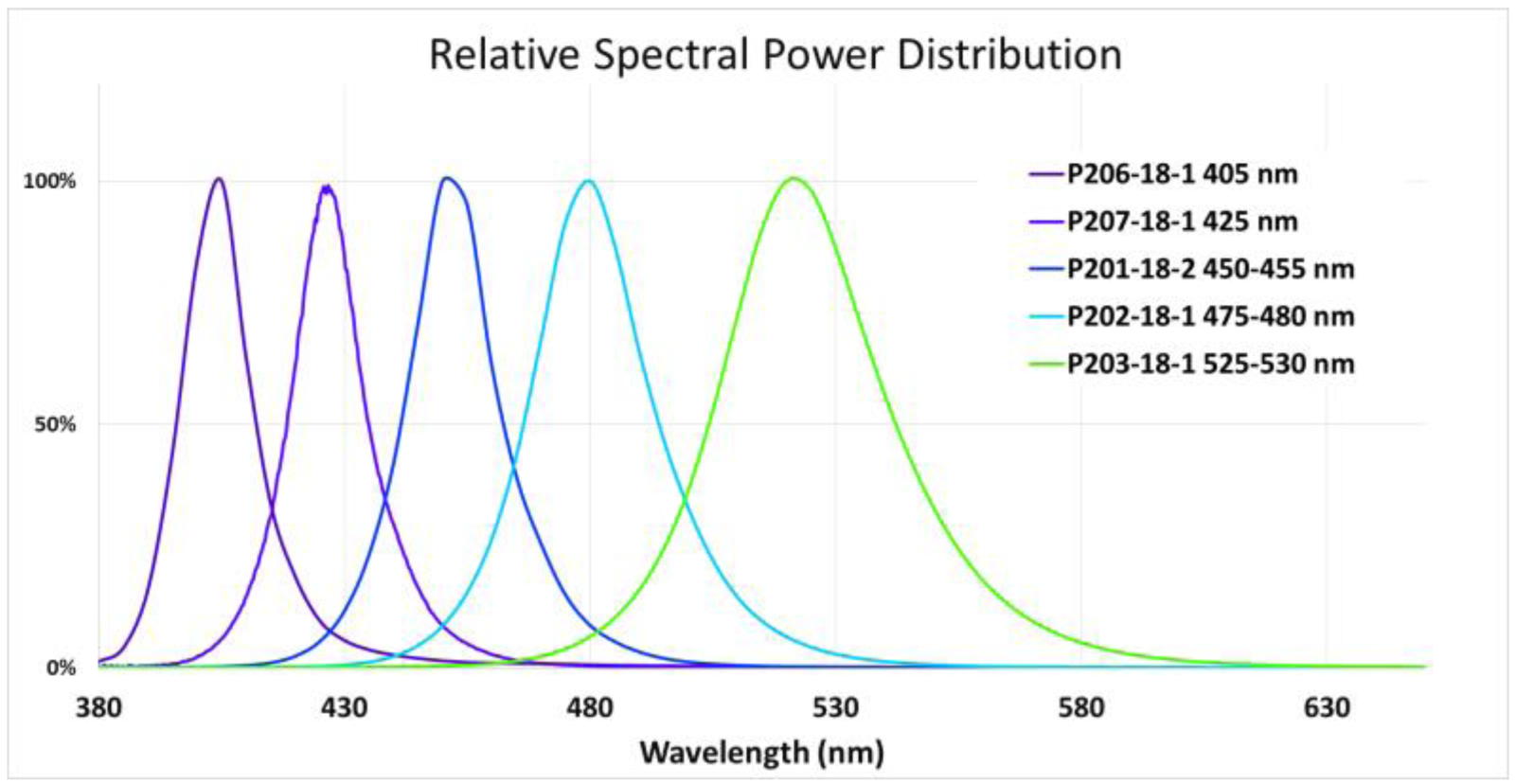

Relative_Spectral_Power_Distribution_Hepatochem_Interchim_1018

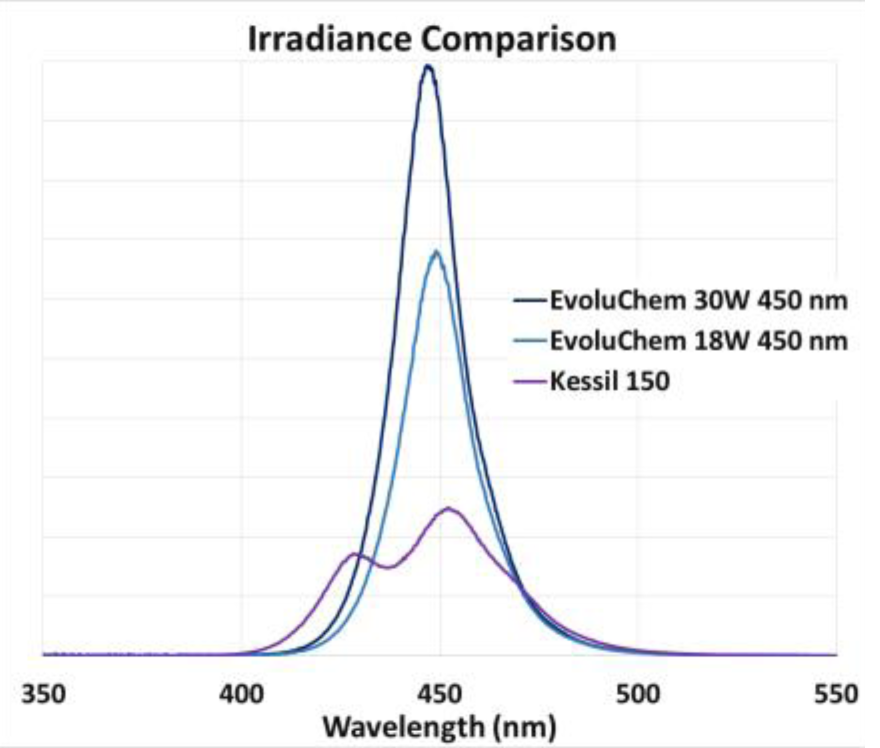

Light Power vs Irradiance
Although the total power of LED light is important, it is essential to estimate the amount of light that actually goes on the sample. If the light is spread over a large area the density of light (irradiance) on sample will be little. Therefore we designed the EvoluChemTM LEDs to focus the light toward the samples. They have light beam angle of 25° which allows to obtain better light efficiency than the Kessil light (40°). With a more focused beam the Evoluchem LED 18W average irradiance is 50% higher than a 34W Kessil light.

Light Sources	Electric Power (W)	Total Irradiance
Kessil 150N	34W	22
P201-18-2 450-455 nm	18W	30
P303-30-1 450-455 nm	30W	50

Product Name	Wavelength	LED	Relative Irradiance*	Part Number
365PF	365 nm	LG/CREE	9 mW/cm²	HCK1012-01-011
380PF	380 nm	LG	8 mW/cm²	HCK1012-01-013
405PF	405 nm	LG	28 mW/cm²	HCK1012-01-010
425PF	425 nm	EPILED	33 mW/cm²	HCK1012-01-012
450PF	450 nm	CREE XPE	34 mW/cm²	HCK1012-01-002
475PF	475 nm	CREE XPE	23 mW/cm²	HCK1012-01-003
525PF	525 nm	CREE XPE	10 mW/cm²	HCK1012-01-004		EvoluChem LED 30W HCK1012-01-008
650PF	650 nm	EPILED	20 mW/cm²	HCK1012-01-014		EvoluChem LED 30W HCK1012-01-008
740PF	740 nm	EPILED	20 mW/cm²	HCK1012-01-015
6200PF	Cold White	CREE XTE	29 mW/cm²	HCK1012-01-005
450DX	450 nm	CREE XPE	55 mW/cm²	HCK1012-01-008
365DX	365 nm	LG	25 mW/cm²	HCK1012-01-006

* Average relative irradiance is measured in the photoredox box.

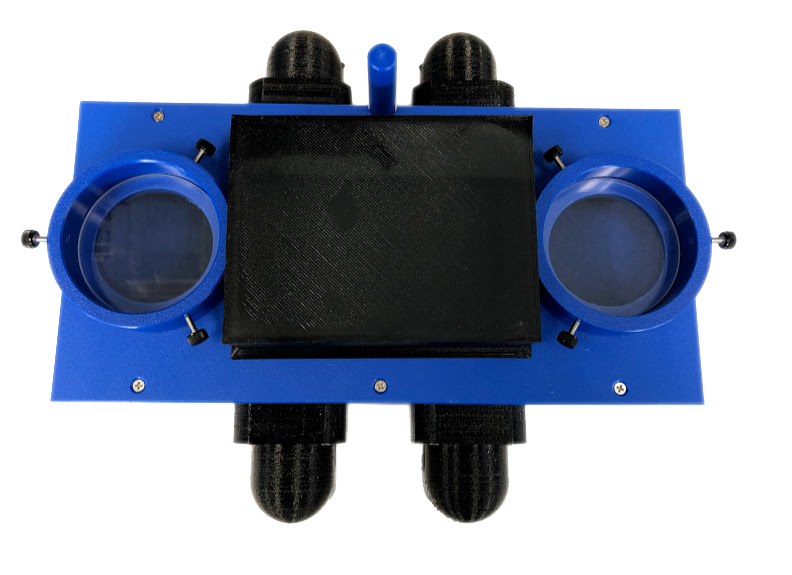

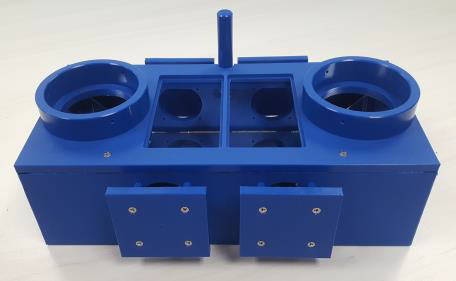

	PhotoRedOx Duo

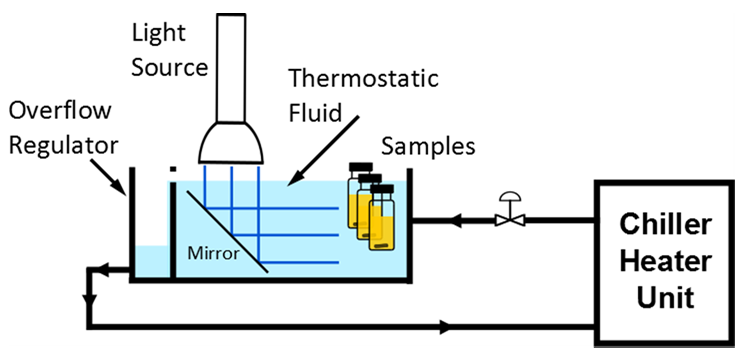

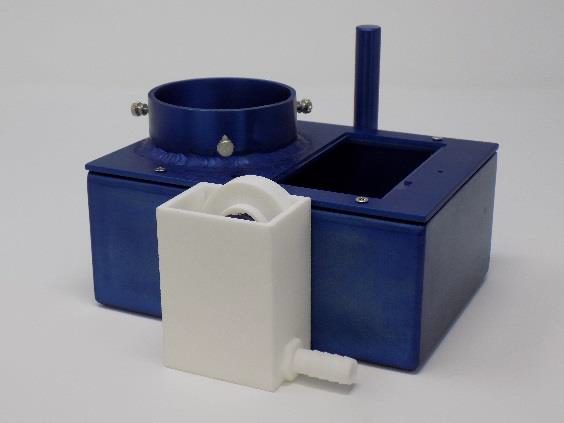

	PhotoRedOx Temperature Controlled

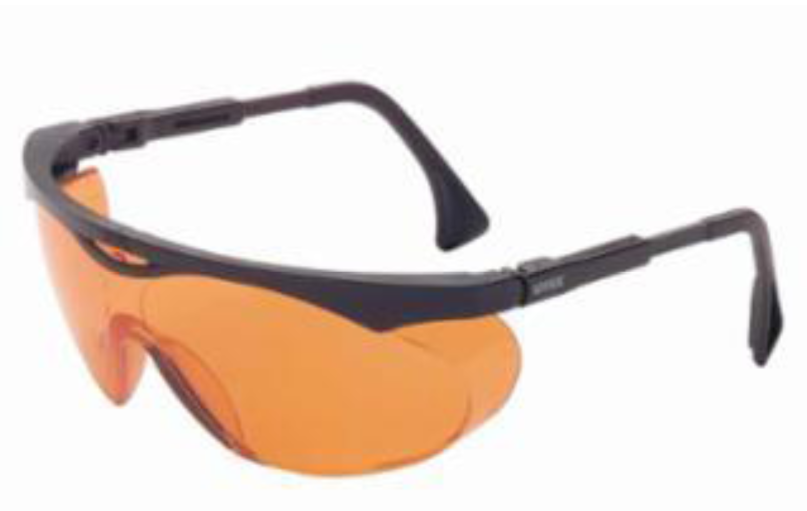

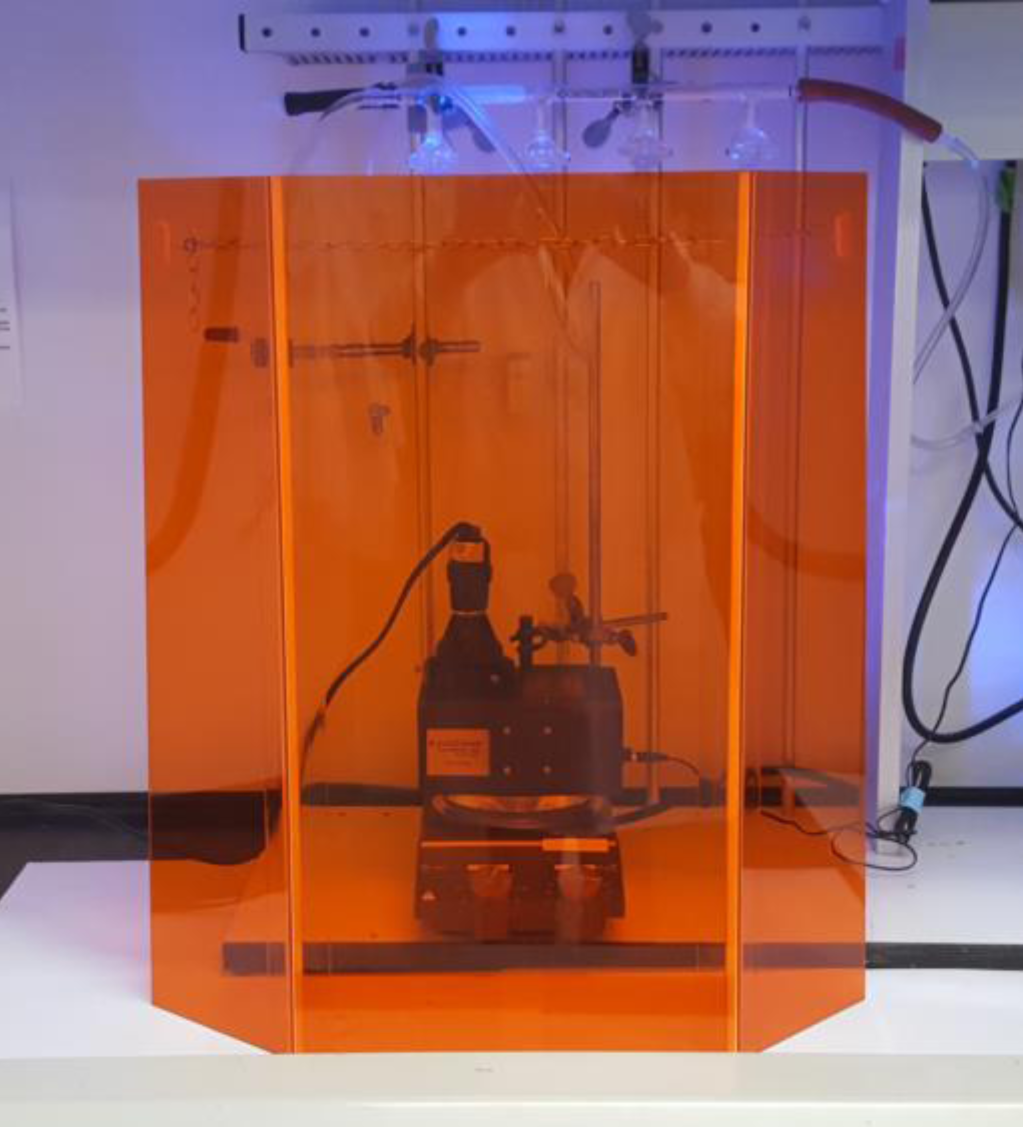

	Light Protective Devices
