 Carousel Stirring Hotplates
Carousel stirring hotplates feature 800 watt heating power, chemical-resistant top plate and are available in three models to suit your chemistry and budget.
 Features
  • 800 watt heating power.
  • Hotplate temperature range: 20 to 300°C.
  • Speed range: 30 to 1400rpm.
  • 135mm top plate diameter.

Carousel Standard Stirring Hotplate
  • Large analogue knobs for convenient speed and temperature setting.
  • Stirrer magnets provide superior coupling at high speeds/viscosities.
  • Stirring features a smooth ramp to set speed, prevents decoupling.
  • A separate on/off switch for heating prevents unintentional heat-up.
  • Illuminated ON/OFF button for easy visibility.
  • Safety circuit switches off heating if the set temp. is exceeded by 25°C.
  • Extra safety control circuit and hotplate cut-out by two independent temperature sensors.
  • Optional Pt1000 temperature sensor with stainless steel or glass coated probe.

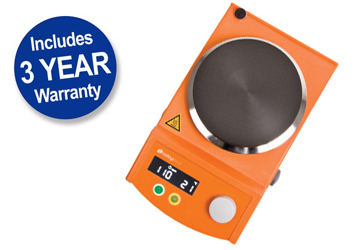

Carousel Tech Stirring Hotplate
  • Digital display of temperature and speed with both set and actual values.
  • Residual heat indicator provides a clear warning of when the top plate surface is above 50°C, minimising accidents.
  • Optional Pt1000 temperature sensor with stainless steel or glass coated probe: with ± 1K accuracy.
   Carousel Advanced Stirring Hotplate
  • RS232 interface for optional PC control.
  • Speed range: 30 - 1400rpm, with superior accuracy: ± 1 %.
  • Optional Pt1000 temperature sensor with stainless steel or glass coated probe: with ± 0.2 K accuracy.
  • External sensor control, if temperature sensor is not immersed in the medium, heating is switched off.
  • Independent safety circuit switches off heating at an operator pre-determined value.
 Hermetically Sealed
Housing for long life
Pt1000 stainless steel
temperature sensor
Convenient packages are
available which include
all popular accessories



  Carousel Standard Carousel Tech Carousel Advanced
Speed, max (rpm) 100 to 1400 100 to 1400 30 to 1400
Speed accuracy (%) ± 2 ± 2 ± 1
Display - Digital Digital
Analogue/digital interface (RS232) - - Yes
Heating power (W) 800 (600 for 115v) 800 (600 for 115v) 800 (600 for 115v)
Hotplate temperature (ËšC) 20 - 300 20 - 300 20 - 300
Accuracy temperature setting (K) ± 5 ± 1 ± 1
External temperature sensor Pt 1000 Pt 1000 Pt 1000
Temp. accuracy with external temp. sensor (K) ± 1 ± 1 ± 0.2
Sensor breakage protection With Pt 1000 With Pt 1000 With Pt 1000
Temperature control Micro controller Micro controller Micro controller
Temperature accuracy hotplate (K) ± 5 ± 5 ± 5
Safety circuit hotplate (ËšC) 25ËšC over hotplate temperature 25ËšC over hotplate temperature 10ËšC - 25ËšC over nominal temperature
Stirring capacity, max (water) 20 20 20
Plate diameter (mm) ø 135 ø 135 ø 135
Top Plate material Kera-Disk (Silumin with ceramic coating) Kera-Disk (Silumin with ceramic coating) Kera-Disk (Silumin with ceramic coating)
Weight (kg) 2.9 2.6 2.6
Dimension l x w x h (mm) 173 x 277 x 94 173 x 277 x 94 173 x 277 x 94
Protection class IP 32 IP 32 IP 32
Supply voltage 230 V/ 50 Hz or 115 V/ 60 Hz 230 V/ 50 Hz or 115 V/ 60 Hz 230 V/ 50 Hz or 115 V/ 60 Hz
