The future flows through
Corning® Advanced-FlowTM Reactors


Stepping into flow chemistry

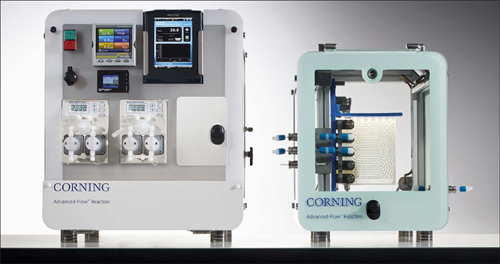

Lab Reactor



 Features

  • Plug and play open system including data monitoring
  • Ready to start, with thermostat integrated
  • Up to 3 liquid lines, 1 gas line and a back pressure regulator for pressure control
  • High chemical durability due to a full metal free system
  • Outstanding mixing and heat exchange with patented HEART design
  • Low internal volume
  • Seamless scale-up with other Advanced-FlowTM Reactor products
Lab_Reactor_Corning_Interchim_0218

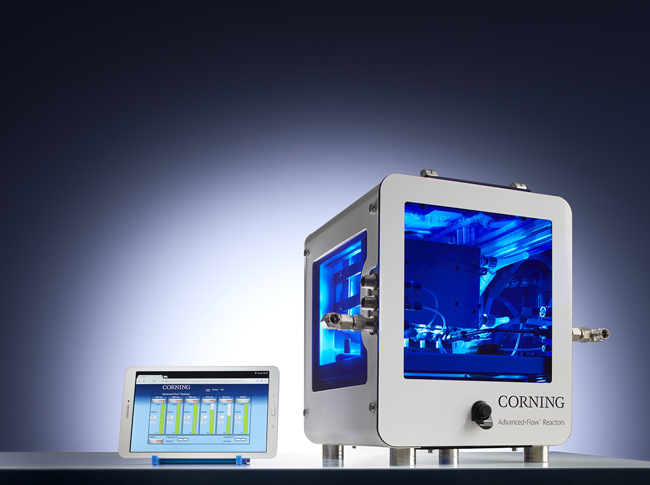

Lab Photo Reactor Option

Features

  • Compatible with the Lab Reactor system
  • Tunable LED irradiation source, with 6 different wavelengths
  • LED lighting intensity higher than 100 mW/cm2
  • Efficient light penetration with both sides of glass fluidic module illuminated
  • Extended LED lifetime due to efficient liquid cooling
  • Wireless control of wavelength selection and intensity
Lab_Photo_Reactor_Option_Corning_Interchim_0218


Technical Specifications

Flow rate Temperature Pressure Materials Fluidic module Options Fluidic module size :
155 x 125 mm
2 to 10 ml/min - 40°C to 200°C Up to 18 barg Glass
PFA / PTFE
Perfluoroelastomer
2.7 ml
internal volume
3rd liquid dosing line
2nd glass fluidic module
Lab Photo Reactor module

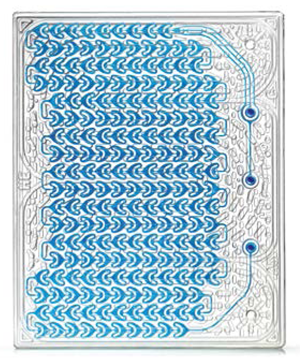

Fluidic_Module_Corning_Interchim_0218
