Reactor-Ready™ Pilot - 5 to 35L Lab Reactor, from Radleys

Replace multiple reactor set-ups with a single, universal pilot scale system with interchangeable vessels that can be swapped in minutes, not hours.

Reactor-Ready Pilot is ideal for process development, scale-up, pilot and kilo labs.


Features include


  • Rapid vessel exchange with quick-release vessel clamp and wide bore hose couplings.
  • Range of single jacketed vessels - 5, 10, 15, 20, 30 and 35 litres.
  • Range of vacuum jacketed vessels - 5 and 10 litres.
  • Vessels manufactured at 1.25 to 1 ratio of internal height to diameter to mimic plant scale reactors.
  • DN200 vessel flange.
  • Accepts all leading brands of overhead stirrer and allows easy, tool free adjustment.
  • Compact stainless steel framework accepts all vessel sizes.
  • Self aligning stirrer coupling engages without the need for tools.
  • Temperature range: -70°C to +230°C (thermofluid temperature).
  • Innovative hose manifolds allow easy thermofluid drain down.
  • Wide range of accessory glassware including condensers, dropping funnels etc.
  • Optional software allows you to log and control 3rd party devices.
Reactor_Ready_Pilot1_Radleys_Interchim_1020

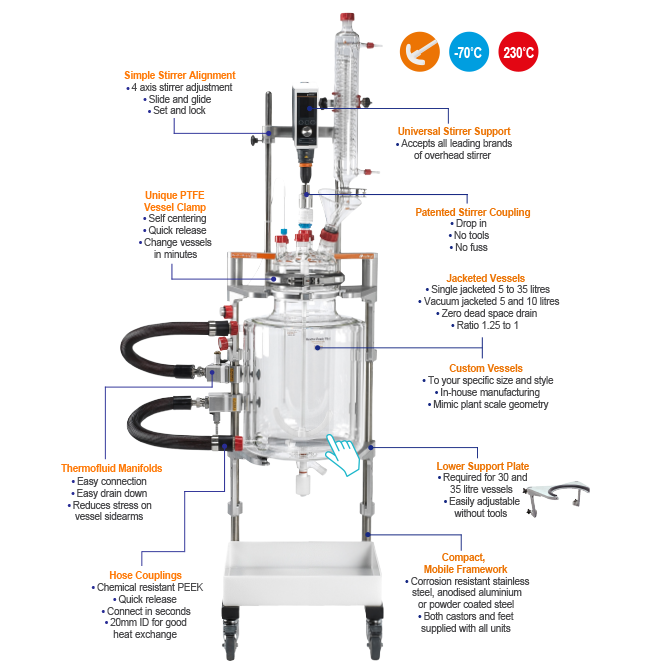

System design

Reactor_Ready_Pilot_Details_Radleys_Interchim_1020

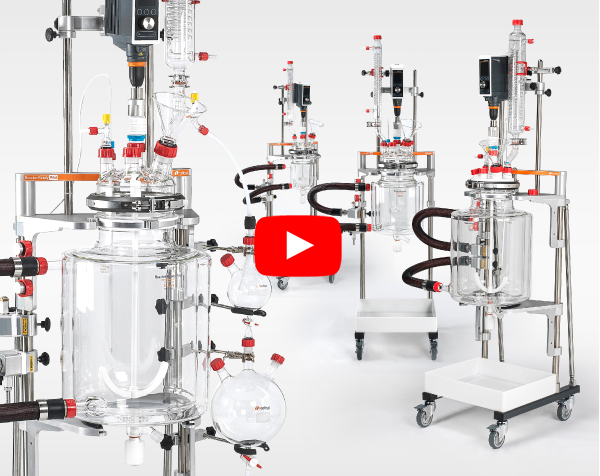

Discover the system in video


Video_Mya_4_Radleys_Interchim_0520
