INTERFINE CHEMICALS > Flash Purification - UPFP > puriFlash 5.400-UV

puriFlash® 5.400-UV
P/N: PFG5F0 (220v)
P/N: PFG5F1 (110v)
Specification_5125_Interchim_0418

Ultra-Purification


  Method development and purification of rare and high added value compounds.
From method development to purification on the same instrument, the system offers more flexibility, saving time. It is compatible with a sub-2 micron column for maximum separating power.
     Small Organic molecules 5_Stars_Interchim_0418
Impurities Identification 5_Stars_Interchim_0418
Natural Products 5_Stars_Interchim_0418
Peptides, Oligonucleotides 4_Stars_Interchim_0418
Proteins, Bio-drugs 2_Stars_Interchim_0418
Metabolites Isolation 5_Stars_Interchim_0418
Traces Enrichment 5_Stars_Interchim_0418

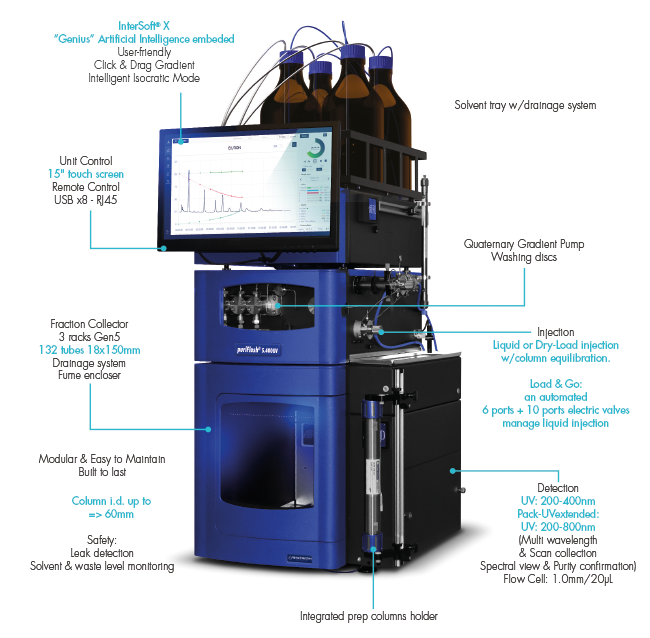

Description_5400-UV_Advion_Interchim_Scientific_0123

Load_Go_Interchim_0418 Load&Go Boost_Go_Interchim_0418 Boost&Go RFID_Interchim_0418


Pump   Injection   Column Holder
Flow rate: 125mL/min
Pressure max.: 400bar
Quaternary Gradient
Washing discs
Solvent tray with drainage system		   6 port + 10 port electrical valves w/loop   Integrated

Detector   Fraction Collector   System Optimization
UV: 200 - 400nm multi wavelength & scan collection
Spectral view & purity confirmation		   3 racks Gen5
132 tubes 18x150mm		   Tubing - after pump 0.5 & 0.75mm
Flow cell-optical length: 1.0mm / 20µL

Unit control   Software   Safety
Touch screen 15"
USB x 8
RJ45		   InterSoft® X "Genius"   Leak detection (pump, FC, holders)
Solvent & waste level monitoring
Collector w/drainage system
RFID
Fume Encloser

Option pack have to be ordered with the purchase of the instrument.

Unit control   pack-UVextended    Machine_Size_Interchim_0418
puriVapTM-6 Check_Interchim_0418   UV: 200 - 800 nm
MS single quad APCI- 1200m/z
or 2000m/z
 No_Check_Interchim_0418   multi wavelength & scan collection
Refractive Index No_Check_Interchim_0418   P/N: UVEX00
Super loop via external pump No_Check_Interchim_0418
Auto-Sampler Check_Interchim_0418   pack-PWD
2nd Collector No_Check_Interchim_0418   Pump washing disc
CarouXel No_Check_Interchim_0418   P/N: PFPWD0   W: 15.75" - 40.0cm
D: 20.0" - 51.0cm
H: 29.5" 75.0cm
Multi-waste 1 inlet / 6 outlet electrical valve No_Check_Interchim_0418
