TLC-FlashReaderTM

The TLC-FlashReaderTM is an ultra compact and robust TLC plate reader with a camera and 3 different lamps: white light, 254nm & 366nm.
It satisfies users working in Research, Development, Quality Control and Process.
It is a multifunctional device that allows you to :
  • View, archive and insert your TLC plates into your electronic laboratory notebook.

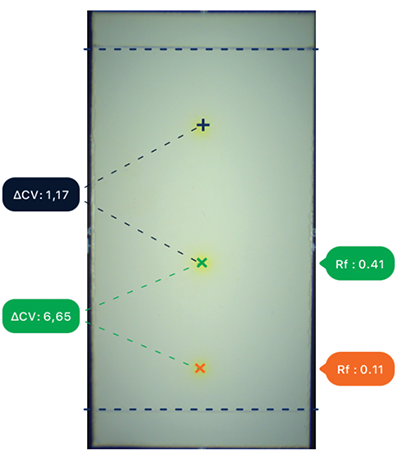

  • Automatically transfer your TLC data (image, Rf, solvents, ΔCV) directly into InterSoft X® software.
   Ecran1_Plaque_Advion_Interchim_Scientific_012
Need to archive TLC plates of your crude sample, your fractions collected after your purification or your reaction monitoring,
the TLC-FlashReaderTM will meet your needs.

The instrument has its own software, which is very easy to use and intuitive. The software has different algorithms for automatic recognition of compounds, solvent front and deposition line.
The software saves the user time and provides accurate results.

  • Ultra compact module (Size: W 17cm x D 22cm x H 31cm)
  • Illumination with white light, UV 254nm & UV 366nm
  • Compatible with aluminium or glass TLC plate up to 8.5cm wide and 12.5cm high
  • Controlled by TLC-FlashReader software
  • Visualisation and archiving of TLC plates
  • Automatic recognition of compounds, deposition line and solvent front
  • Automatic calculation of Rf and ΔCV
  • Automatic transfer of images, Rf, solvent name and %,
    ΔCV to Genius

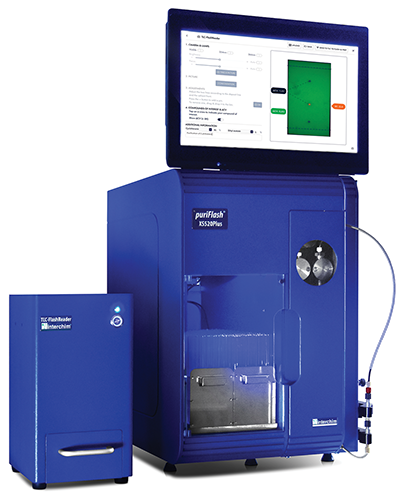

  • Can be used in stand alone mode with an external computer or coupled to the puriFlash® Gen5.
  • Automatic lamp shut off when the drawer is opened to protect you from UV radiation
  • 2 year warranty excluding wear parts
  TLC_FlashReader_XS520Plus_Advion_Interchim_Scientific_0122


BKZYO0
TLC-FlashReaderTM +
Software / 220v

BKZYO1
TLC-FlashReader
TM + Software / 110v

BXB6Y0
TLC-FlashReader
TM + ASUS tablet + Software / 220v

BXB6Y1
TLC-FlashReader
TM + ASUS tablet + Software / 110v

TLC_FlashReader_Advion_Interchim_Scientific_0122

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

E-Document_TLC_FlashReader_Advion_Interchim_Scientific_0722
