Reactor-Ready™ Flex Pro - 100mL to 5L Lab Reactor, from Radleys

Replace multiple reactor set-ups with a single, universal scale system with interchangeable vessels that can be swapped in minutes, not hours.

Reactor-Ready Flex Pro is ideal for process development, scale-up and kilo labs.


Features include


  • Rapid, tool-free vessel exchange with quick-release vessel clamp
    and hose couplings.
  • Range of single and vacuum jacketed vessels from 100 ml to 5 litres.
  • Process vessels to mimic larger scale plant or manufacturing reactors,
    with 1:1.25 ratio and dish-shaped bottom.
  • Accepts all leading brands of overhead stirrer and allows easy, tool-free adjustment.
  • Triple support stand features heavy-duty stainless steel support rods for stability.
  • Self aligning stirrer coupling engages without the need for tools.
  • Innovative hose manifolds allow easy thermofluid drain down.
  • Jacket temperature range: -70 °C to +230 °C.
  • Wide range of accessory glassware including condensers and dropping
    funnels etc.
  • Optional software allows you to log and control stirrers, circulators,
    balances, pumps, temperature sensors and other devices.
Reactor_Ready_Huber_Radleys_Interchim_1120

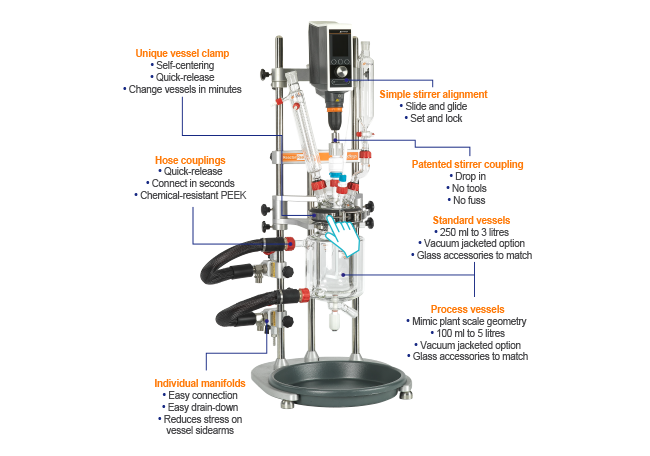

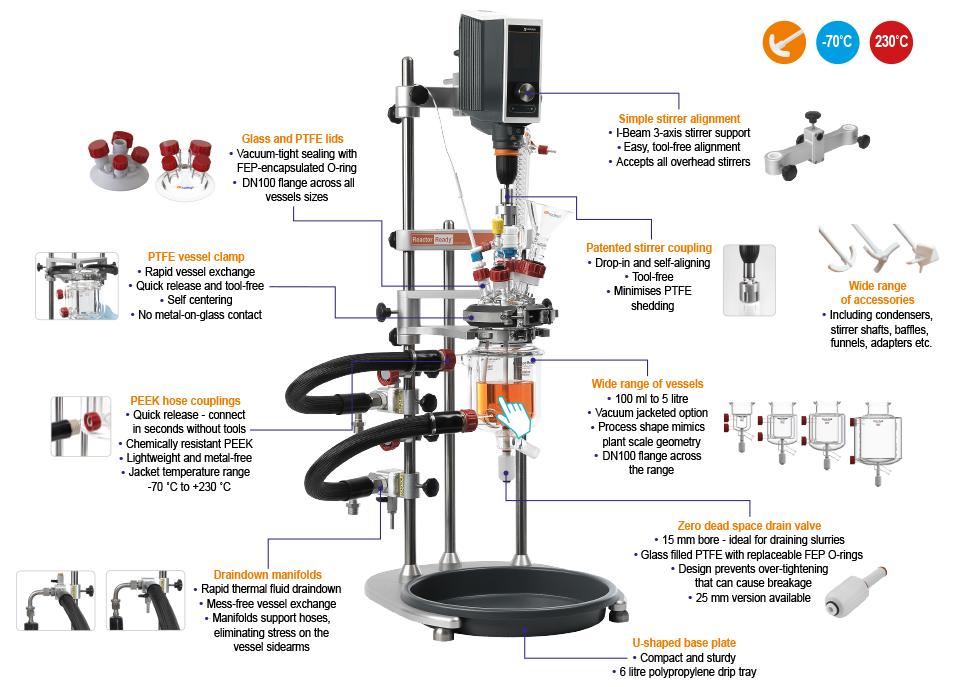

System design

Reactor_Ready_Details2_Radleys_Interchim_1120

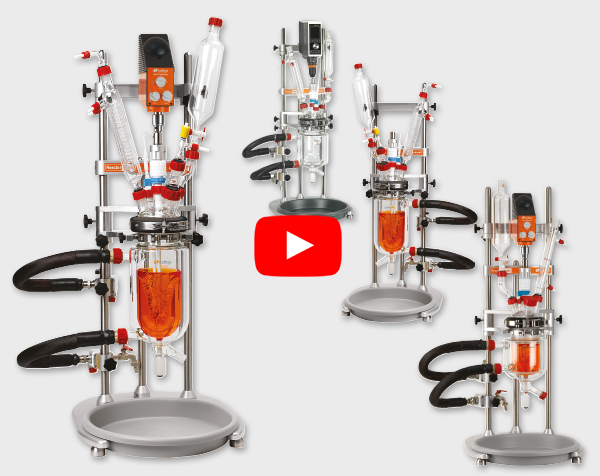

Discover the system in video


Video_Reactor_Ready_Radleys_Interchim_0520
