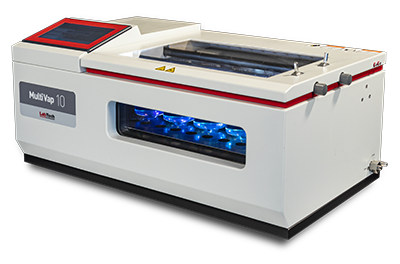

MultiVap 10

The new LabTech MultiVap 10 automatic parallel system increases the capacity by 25% in comparison to the MultiVap 8 boosting the lab throughput.

The price/performance ratio has further increased. With this system it is possible to evaporate to solid state or concentrate into a fixed end-point volume. A compact solution compared to conventional rotary evaporators, with the possibility to be used outside the fume hood thanks to the integrated vapor evacuation system.

MultiVap10_Closed_Labtech_Advion_Interchim_Scientific_1023

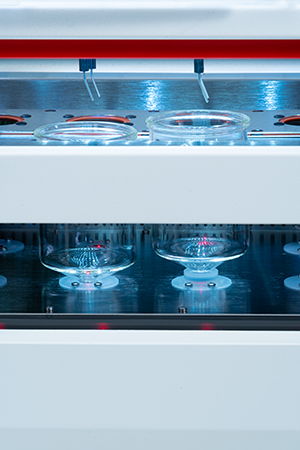

  • Vortex nitrogen purge to get the highest concentration efficiency. The location and direction of nitrogen purge can be adjusted according to the concentration cup size and sample volume
  • Operations are visible through the backlit front window. Sample cups do not need to be handled to check the residual volume
  • Concentration chamber including a highly effi cient vapour exhausting system
  • Built-in digital nitrogen gas regulator to control the nitrogen fl ow and the evaporation speed
  • Automatic detection of the liquid endpoint
  • 10 positions supporting 50 & 200mL concentration cups simultaneously
  • 10 infrared sensors for single cup volume control
  • Possibility to place the concentration cups in the liquid handler of GPC/SPE directly
  • Liquid bath with temperature control range from ambient to 100°C
  • Low liquid level and pressure alarms to ensure safe operations
  • Touch screen control interface
  • Nitrogen requirement: from 2 to 6.8 bar (30 to 100 psi)
  • Weight: 25Kg
  • Dimensions: (LxWxH cm) 44x68x64 (open) 44x68x33 (closed)
  • Power supply voltage: 230V 50/60Hz


Vortex_Labtech_Advion_Interchim_Scientific_1023


Included with the MultiVap 10


Acccessories_Vials_Labtech_Advion_Interchim_Scientific_1023

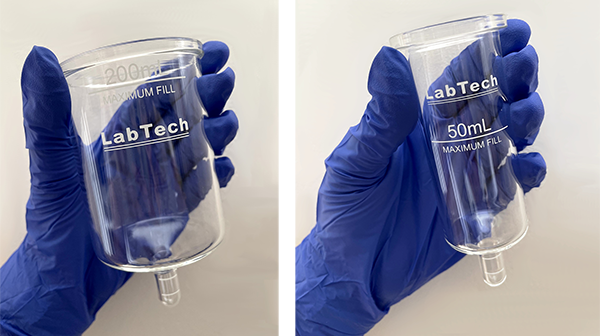

  • N°10 - 200mL concentration vials - 1mL end point
  • N°10 - 50mL concentration vials - 1mL end point
  • N°1 - 50mL rack - 10 positions
  • N°1 - 200mL rack - 10 positions
  • N°1 Exhaust fume tube 3 m
  • N°1 Electric power cable
  • N°10 Plastic vapor stoppers for 50mL holes
  • N°10 Plastic vapor stoppers for 200mL holes


Discover the system in video


Video_Multivap_10_LabTech_Advion_Interchim_Scientific_1023
