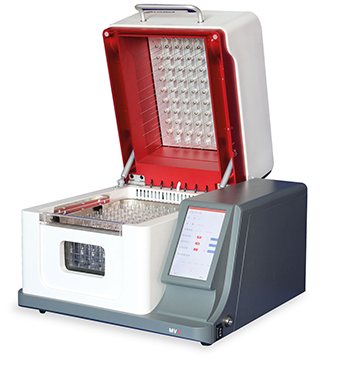

The MultiVap 54 is the latest multi-channel and multifunctional parallel instrument designed by LabTech, including all accessories and functions to ensure the highest standard of efficiency, speed, reliability, throughput and safety of any concentration process. Nitrogen sweeping, needle level adjustment and visible concentration process are only few of the advantages offered by the
MultiVap 54.
MultiVap 54 is the perfect choice to complete organic sample preparation process. MultiVap 54 can concentrate up to 54 samples simultaneously from 1.5mL to 200mL volume. Sample tube size can be customized according customer requests and nitrogen needle positions can be adjusted automatically or manually according to sample volume reduction during the evaporation process. This unique feature of MultiVap 54 reduces the evaporation time and nitrogen gas consumption compared to traditional nitrogen stream evaporators. Once the distance between nitrogen blowing needle and solvent surface is optimized, the vortex solution flow in the sample tube increases the surface area in contact with nitrogen and speed up the evaporation rate.
MultiVap 54 is specifically designed as a fume hood free system. The exhaust hose on the backside of the instrument can be directly connected to any air vent system or fume hood to remove solvent vapours and grant user’s safety.
MultiVap 54 automated evaporation system can significantly speed up the workflow and reduce the labor time during evaporation. All the features of MultiVap 54, such as programmable method setup and automated vertical lift of nitrogen needles, promote the evaporation performance and reduce N2 gas consumption. Preliminary studies demonstrate both water bath temperature and N2 flow rate improve evaporation efficiency for different solvents. In the laboratory practice, water bath temperature should be appropriately set close to the solvent boiling points, not underestimating the risk of losing analytes in order to obtain good sample recovery.
The MultiVap 54 (also called “THE GAME CHANGER”) is the latest multi-channel and multifunctional parallel instrument designed by LabTech, including all accessories and functions to ensure the highest standard of effi ciency, speed, reliability, throughput and safety of any concentration process. Nitrogen sweeping, needle level adjustment and visible concentration process are only few of the advantages offered by the MultiVap 54.
Technical features
6 channels of 9 needles each (for a total of 54 samples of 10mL)
able to work either individually or simultaneously
Automatic adjustment of nitrogen needle according to the sample volume reduction
Visible concentration process thanks to the front window and internal lights
Auto-locked cover during operations
Easy replacement of nitrogen needles
7" touch-screen color control panel
Low-level liquid alarm
Intuitive software interface
Liquid bath heating mode
Temperature reading error: < 0.5% Temperature control: P.I.D
Temperature accuracy: ±0.1°C
Temperature range: ambient to 100°C
Nitrogen requirement: from 2 to 6.8 bar (30 to 100 psi)
