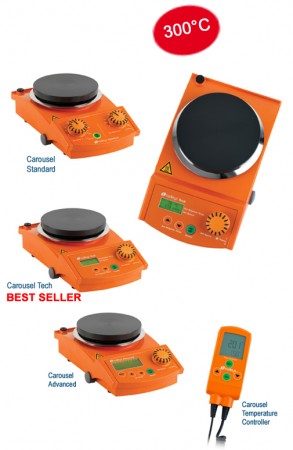

Carousel™ Stirring Hotplates

   Carousel stirring hotplates feature 800 Watt heating power, chemically resistant top plates and are available in three
   models to suit your chemistry and budget...

Common Features...

• 800 Watt heating power.
• Heating range: 20 to 300°C.
• Speed range: 100 - 1400rpm.
• Chemically resistant Kera-Disk top plate.
• 135mm Top plate diameter.
• 3 Year Warranty.

		Carousel Standard Stirring Hotplate... • Large analogue knobs for convenient speed and temperature setting. • Stirrer magnets provide superior coupling at high speeds/viscosities. • Stirring features a smooth ramp to set speed, prevents decoupling. • A separate on/off switch for heating prevents unintentional heat-up. • Illuminated ON/OFF button is for visual control. • Safety circuit switches off heating if the set temp. is exceeded by 25°C. • Extra safety control circuit and hotplate cut-out by two independent temperature sensors. • Optional plug-in Carousel Temperature Controller with stainless steel or glass temperature sensor for external control. • Accuracy with Temperature Controller: ± 1 K Carousel Tech Stirring Hotplate... All the features of the Standard, plus digital display of speed and temp. • Digital display of temperature and speed with both set and actual values. • Residual heat indicator provides a clear warning of when the top plate surface is above 50°C, minimising accidents. • Optional plug-in Carousel Temperature Controller. Carousel Advanced Stirring Hotplate... All of the above features of the Carousel Tech, plus: • RS232 interface for optional PC control. • Speed range: 30 - 1400rpm, with superior accuracy: ± 1 %. • Optional Pt1000 temperature sensor with stainless steel or glass coated probe: with ± 0.2 K accuracy. • External sensor control, if temperature sensor is not immersed in the medium, heating is switched off. • Independent safety circuit switches off the heating at an operator pre-determined value between 10°C and 25°C above set point. Carousel Temperature Controller... • Fuzzy logic microprocessor control ensures heating with no overshoot. • Digital display for set and actual temperature. • Control range: ambient temperature to +300°C. • Displays temperatures from -50°C and +300°C • MAX-button displays temperature at which the item automatically is switched off.
