StormTM Heating/Cooling Work Station

Combined with a suitable circulator, Storm can provide controlled steady state heating and cooling...

Storm was designed as an add-on module for the Carousel 6 and Tornado combination, creating a powerful "Parallel Process Reactor" that heats and cools, mechanically stirs up to 6 flasks (50ml to 250ml), making it the ideal process optimisation and development tool.

Features...

  • Create a single or parallel stirred reactor with controlled heating/cooling from 5ml to 5litres.
  • Thermofluid range of -85°C to +235°C ; providing a solution temperature -65°C to +200°C.
  • 135mm ø top plate integrates with the Carousel6, Tornado, Heat-On & other reaction blocks.
  • Ideal for temperature controlled steady state reactions.
  • Unique internal design maximises heat transfer from the thermofluid, focussing the energy towards the top plate surface. This design also minimises temperature variation across the contoured topplate.
  • The insulated outer case reduces heat loss and prevents the user from coming into contact with the extreme temperatures of the internal thermofluid.
  • Mechanical stirring provided by Tornado or suitable over head stirrer.
  • M24 hose connections, suitable for all popular brands of circulator or thermoregulator.

Typical heating & cooling profiles for Storm...
The following temperature profiles demonstrate the cooling and heating power of Storm when combined with a Huber 705 thermoregulator and a Carousel 6 Reaction Station.

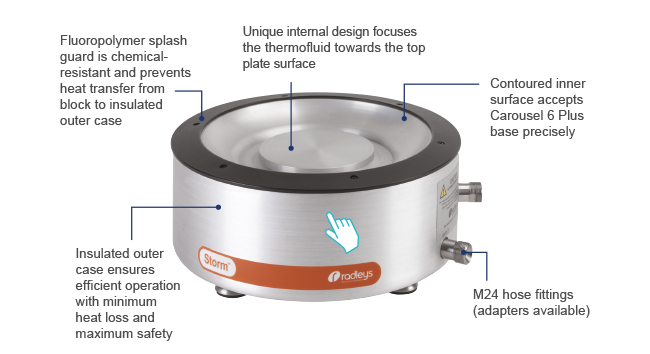

1: Unique internal design focuses the thermofluid towards the top plate surface.
2: Contoured inner surface accepts Carousel 6 base precisely.
3: M24 hose fittings (adapters available).
4: Insulated outer case ensures efficient operation with minimum heat loss and maximum safety.
5: Fluoropolymer splash guard is chemically resistant and prevents heat transfer from block
to insulated outer case.

Description Storm
Solution Temperature Range -65°C to +200°C
Thermofluid Operating Limits -85°C to + 235°C
Control by Solution Temperature No
Typical Applications Steady state temp reactions such as paralle chemistry
Hose Fitting M24 (24mm)
Dimensions (mm) 367 x 143.5mm
Insulated Yes
Weight 13kg
